An Ali Arc truck bar is the best collision protection available for your vehicle. We have gone to great lengths to design and build a bar that looks good without compromising strength and purpose. You can be sure that your investment is protected.
Select your language below, to download our brochure.
Features
Available for virtually all trucks, each unit comes with the following.
- PATENT PENDING STEEL MOUNTING BRACKET AND TILT SYSTEM
- VERY STRONG SINGLE PIN STEEL TOW HITCH
- HALF INCH HIGH TENSILE ALUMINUM BUMPER
- HIGHLY POLISHED, MARINE GRADE ALUMINUM TUBE WORK
- INSTALLATION INSTRUCTIONS AND WARRANTY
- 1/2″ wall thickness extruded high tensile aluminum bumper
- 1/4″ wall thickness marine grade tube
- 2 1/2″ diameter tube
- 1/4″ ‘I beam’ uprights, welded both sides
- Integrated centre tow hitch and easy access tilt system
- Removable tow pin
- High pressure cast logo eyebolts
- Lightweight 260lbs – 340lbs
- Tested and proven original designs
- 2 or 4 post options available on certain models
- 12″ or 16″ bumper on certain models

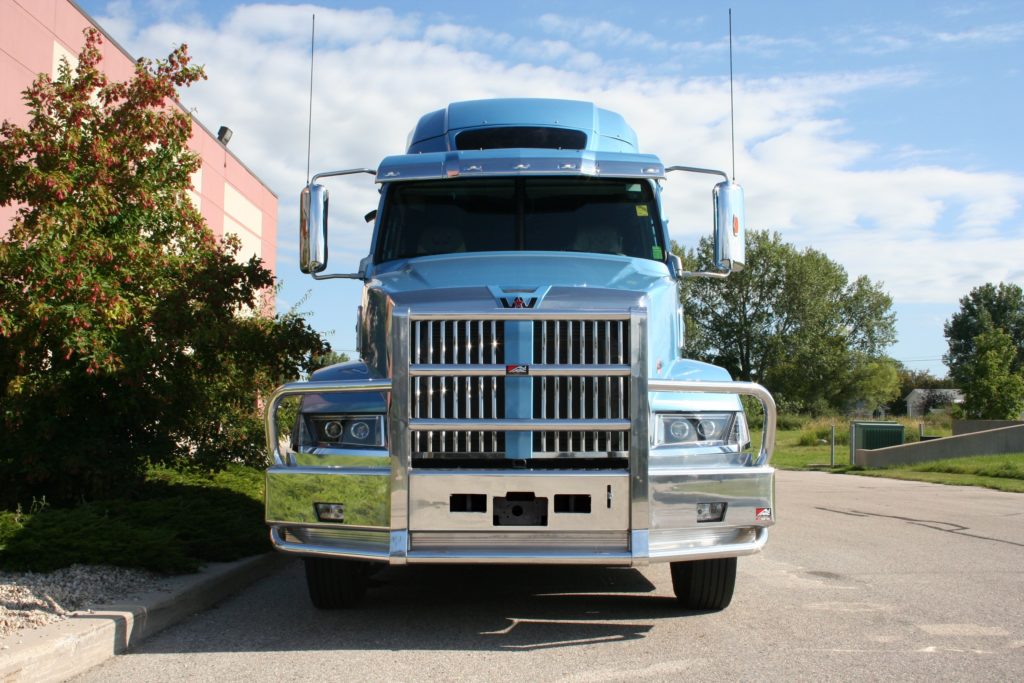

Gallery
Part Numbers
SKU | Description | Shape | Weight (lbs.) |
---|---|---|---|
WS163F | WESTERN STAR 4900 EX/FX HIGHWAY (FA) 1997 – 2007 | Straight | 270 |
WS163T | WESTERN STAR 4900 EX FX HIGHWAY 16″ BUMPER (FA) 1997 – 2007 | Straight | 305 |
WS162T | WESTERN STAR 4900 LOG 16″ BUMPER (FA), 2008 – UP | Straight | 305 |
WS190R | WESTERN STAR 4900 (HV) HIGHWAY RAISED CAB 16″ BUMPER (SA) | Angled | 245 |
WS191R | WESTERN STAR 4900 SA LOG RAISED CAB 08-UP | Angled | 300 |
WS190B | WESTERN STAR 4900 (HV) LOG (SA) | Angled | 217 |
WS189R | WESTERN STAR 4900 HIGHWAY RAISED CAB 16″ BUMPER (SA), 2008 – UP | Angled | 280 |
WS189B | WESTERN STAR 4900 HIGHWAY (SA), 2008 – UP | Angled | 280 |
WS164F | WESTERN STAR 4900 HIGHWAY (FA), 2008 – UP | Straight | 255 |
WS164T | WESTERN STAR 4900 FA HIWAY 16″ BUMPER 2008 – UP TO CURRENT | Straight | 305 |
WS164T4 | WESTERN STAR 4900 FA HIWAY 16″ BUMPER 4 POST 2008 – UP TO CURRENT | Straight | 305 |
WS155F | WESTERN STAR 4900F HIGHWAY (FA) 1990 – 1996 | Straight | 270 |
WS155T | WESTERN STAR 4900F HIGHWAY 16″ BUMPER (FA) 1990 – 1996 | Straight | 305 |
WS193T | WESTERN STAR 4700 SFA 2013 – UP | Straight | 280 |
WS196T | WESTERN STAR 5700 XE 2015-UP 410 BUMPER | Angled | 348 |
WS196TW | WESTERN STAR 5700 XE 2015-UP WIDE RAD 410 BUMPER | Angled | 348 |
WS196T4 | WESTERN STAR 5700 XE 2015-UP 410 BUMPER 4 POST | Angled | 358 |
WS196TW4 | WESTERN STAR 5700 XE 2015-UP WIDE RAD 410 BUMPER 4 POST | Angled | 358 |
WS196B | WESTERN STAR 5700 XE 2015-UP | Angled | 319 |
WS196B4 | WESTERN STAR 5700 XE 2015-UP 4 POST | Angled | 330 |
WS196BW | WESTERN STAR 5700 XE WIDE RAD 2015-UP | Angled | 320 |
WS196BW4 | WESTERN STAR 5700 XE WIDE RAD 4 POST 2015-UP | Angled | 320 |
HN300B | HINO NEW CONCEPT SBA, 2005 – CURRENT | Angled | 280 |
WS197BTC | WS 49X SBA 410 W/CA AND FOG LIGHT 2023-UP | ||
WS198BCQ | WESTERN STAR 57X 2023-UP W/CAS Q-LATCH | ||
WS197FC | WS197FC W/STAR 49X SFA (TWO HOOKS) W/CAS 21-UP | Straight | 320 |
WS197FCQ | WESTERN STAR 49X SFA W/CAS Q-LATCH | Straight | 320 |
WS198BC | WESTERN STAR 57X 2023-UP W/CAS | Angled | 320 |
